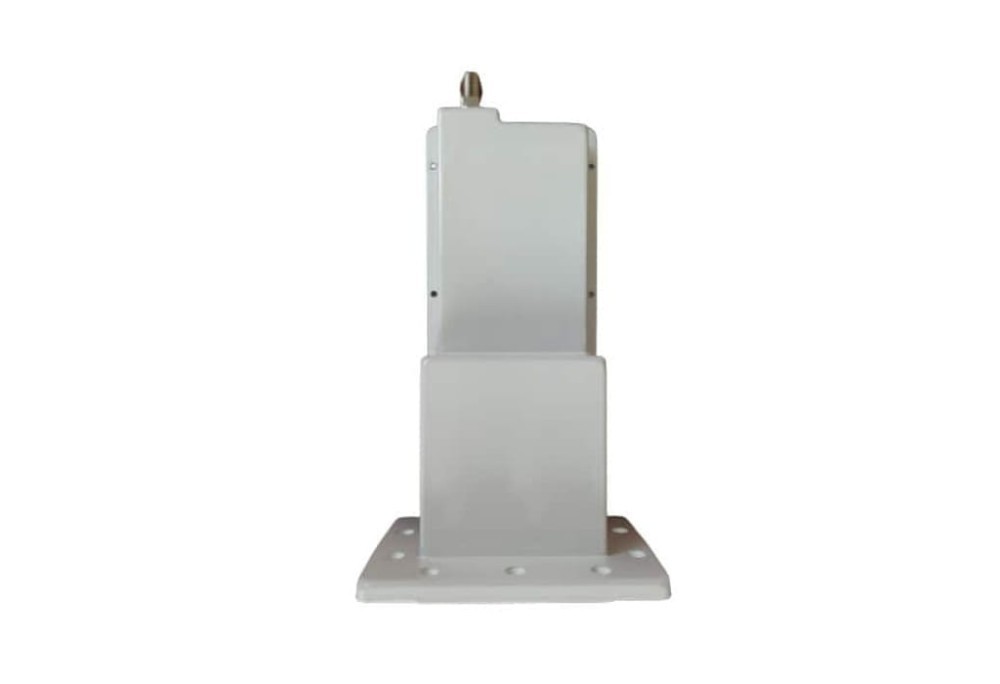

SOLID 82155R C-Band TI and 5G Filter LNBF

5 /5.0 (1 reviews)

SKU SOLID 82155R C-Band TI and 5G Filter LNBF

People are viewing right now

Todays Deal Exclusive for today only

Flash Sale

SOLID 82152R Extended C-Band 5G Filter LNBF
Model - 82152R
Input Freq. (GHZ) - 4.5~4.8 GHz
Output Freq. (MHz) - 1150-1450 MHz
L.O. Freq. & Stability  - 5.950 GHz+/- 500KHz
Noise Temp.  - 15K (@+25C)  - 30K Max
Input VSWR    - 2.5:1 Max
Image Rejection  - 45 dBc min.
Conversion Gain  - 60dB typ. 55dB min. 70dB max.
Output VSWR  - 2.5 : 1 max.
Gain flatness   - 4 dBp-p max.
Gain ripple   - +/- 0.5 dB max.
1dB gain compression point - +5 dBm min.
Output impedance   -  75ohms
Leakage {@input port)  - -45dBm max.
Phase Noise -  -65dBc/Hz @ 1KHz Offset
-80dBc/Hz @ 10KHz Offset
-95dBc/Hz @ 100KHz Offset
Power Supply   - 012 to +24V DC
Required Current -  250 mA max.
Operating temperature  - -40'C to +60'C
Storage temperature   -  -40'C to +80'C C33
Relative Humidity   -  0% to 95% RH
Input waveguide flange   -   WR-229
If output connector  -  - F-Type female
DC Input - +15 to 24 V
Weight    -    575g

Tested in :
We have successfully tested this LNB on Bangabandhu1 Satellite for Extended C-Band Signals.
Warning :
It will not work, in Normal C-Band Signals, It is only for extended C-Band signals. You can Receive TV Signals from the Bangabandhu C-Band satellite by fitting on the C-Band Dish Antenna.

Solid 5G Filter C-Band LNB available at best price in India
Solid 5G Filter LNB is the best.
